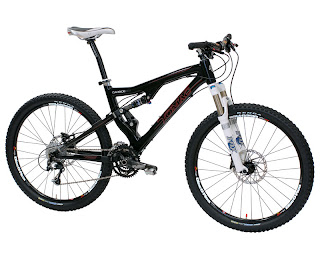

Tomac 2010 Carbide SL Cross Country MTB NEW brand

Tomac 2010 Carbide SL Cross Country MTB NEW brand

The Carbide SL is the ultimate cross country weapon.

Over three years in development, the Carbide SL is the ultimate in lightweight, stiffness and pedalling efficiency. At a scant 4.4 pound frame weight with DT Swiss carbon shock, it's one of the lightest XC full suspension bikes on the market, and certainly the stiffest. The Carbide SL can be hammered through anything an XC rider or racer could throw at it.

Saddle up boys, saddle up.

Features

• 90mm rear travel.
• 4.4 pound/2000 gram frame weight with DT Swiss shock, large size
• Optimized carbon fiber front triangle, individual lay ups for each size.
• High modulus carbon fiber with aluminum dropouts.
• Integrated aluminum chain suck protector.
• Low stand over height with plenty of seat post adjustability.
• Only three sets of bearings means easy service.
• Accepts dual water bottles on all but the small frame.
• Available in small, medium, large and extra large.

Spec

(Also available as a frameset)

• Sizes
• Color
• Rear Shock
• Fork
• Headset
• R/Derailleur
• F/Derailleur
• Shifters
• Brakes
• Cranks
• Cassette
• Chain
• Wheelset
• Tires
• Grips
• Handlebar
• Stem
• Seatpost
• Saddle

Carbide SL 1

• S M L XL
• Natural
• Fox RP23
• Fox Float Fit RL100
• FSA ZS-3 Internal
• SRAM XX 10-Speed
• SRAM XX
• Shimano SLX
• Avid Elixir XX
• Truvativ XX 28/42
• SRAM XX 10-Speed
• SRAM XX
• Easton XC One
• Kenda Tomac Blue Groove, 2.0 fold
• Tomac Custom Thin Waffle
• Easton Monkeylite Low, 685mm
• Thomson Elite, 31.8mm, 90mm
• Thomson Elite, 30.9mm, 367mm
• WTB Silverado Classic Cut

Carbide SL 2

• S M L XL
• Natural
• Fox RP2
• Fox Float RL 100mm
• FSA ZS-3 Internal
• SRAM X-9 Long Cage
• SRAM X9
• SRAM X-7
• Avid Elixir R
• Truvativ Stylo 3.3
• SRAM Powerglide 980 11-34
• SRAM PC971 Power-Link gold
• Easton XC Two
• Kenda Tomac Blue Groove, 2.0 fold
• Tomac Custom Thin Waffle
• Easton EA70 Riser, 685mm
• Easton EA70, 31.8mm, 90mm
• Thomson Elite, 30.9mm, 350mm
• WTB Silverado Classic Cut

Geometry

Carbide XC

• Shock ETE
• Rear Travel
• Fork Travel
• Head Angle
• Seat Angle
• Head Tube length
• Seat Tube Length
• Effective TT Lenth
• Wheelbase
• Chain Stay Length
• BB Height
• Standover Height

S

• 165 x 38 (6.5 x 1.5)
• 90mm (3.5")
• 100mm (3.9")
• 70.5°
• 73°
• 114mm (4.5")
• 394mm (15.5")
• 550mm (21.5")
• 1045mm (41.4")
• 430mm (16.9")
• 332mm (13")
• 720mm (28.34")

M

• 165x38 (6.5 x 1.5)
• 90mm (3.5“)
• 100mm (3.9")
• 70.5°
• 73°
• 114mm (4.5")
• 445mm (17.5")
• 585mm (23")
• 1087mm (42.8")
• 430mm (16.9")
• 332mm (13")
• 725mm (28.54")

L

• 165x38 (6.5 x 1.5)
• 90mm (3.5")
• 100mm (3.9")
• 70.5°
• 73°
• 130mm (5.1")
• 495mm (19.5")
• 611mm (24")
• 1109mm (43.7")
• 430mm (16.9")
• 332mm (13")
• 730mm (28.74")

XL

• 165x38 (6.5 x 1.5)
• 90mm (3.5")
• 100mm (3.9 inch)
• 70.5°
• 73°
• 150mm (5.9")
• 534mm (21")
• 635mm (25")
• 1120mm (44.1")
• 430mm (16.9")
• 332mm (13")
• 735mm (28.93")
