RS1600 repair Stand

RS1600 repair Stand



For allowing heavy jobs
--------------------------


The tripod of RS-1600 is the one we adopted on RS-6000 super big workstand.
The leg length is shortened to fit RS-1600's small frame, but the durability is tremendously high because it was originally designed to accept over 30 kgs load.

The leg dimension is changed from rectangle to round, and the thickness is also increased.
In addition, the tripod base bracket design is completely different from RS-1500, and we added sub arms to support the load on each leg.
Finally, the total durability of new tripod has been increased over 3 times than RS-1500.

Tripod on RS-1600 can open/close at once. And we added one more quick lever to lock the tripod only.

----------------------------------------------------------------------------------------------------------------------------------------------------------------
frame Support ARM
-----------------

Adjustable angle and clamping position

The arm to support the front fork is angle adjustable in 3 positions (80, 85 & 90 degrees) by just changing the pin insertion point.
The pin also works to lock the arm when it's folded down.

The front fork mount is fully position adjustable along the arm to accommodate any wheel base frames. Fixing position is done by quick lever easily.



----------------------------------------------------------------------------------------------------------------------------------------------------------------
Rear End Hanger (option)
------------------------

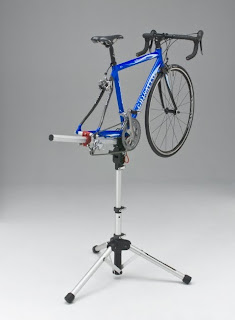

To change the bike direction

You must remove the front wheel to use RS-1500 in standard condition, so you cannot maintain the front brake because of lack of front wheel.

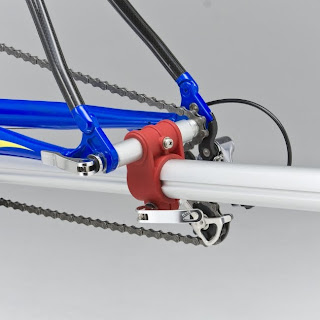

Rear End Hanger clamps the frame rear end instead of front fork end to switch the bike direction.

By changing the shim position, it will fit 3 different hub width (120, 130 & 135mm) without tool.

----------------------------------------------------------------------------------------------------------------------------------------------------------------

Caution
--------

Important Notices

* Use RS-1600 on flat and level floor or ground. Using it on slanted condition will cause falling down problem.
* Align the leg to the frame when you mount bike on. If you set the bike between the legs, it may fall down due to worse balance depending on the bike weight.
* Most job are possible on RS-1600, except the job that applies too much load onto the arm top.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------
Spec
------
* SKU 410-1400-00
* BB Support Height 740 - 1,050 mm
* Dimensions W 900 x D 770 mm
* Color Silver
* Material Alloy
* Max Load 30 kgs
* Net Weight 3.6 kgs
-----------------------------------------------------------------------------------------------------------------------------------------------------------------
